PMIG-160A (Pulse Mode Gas Shielded Welding)
Skyintej

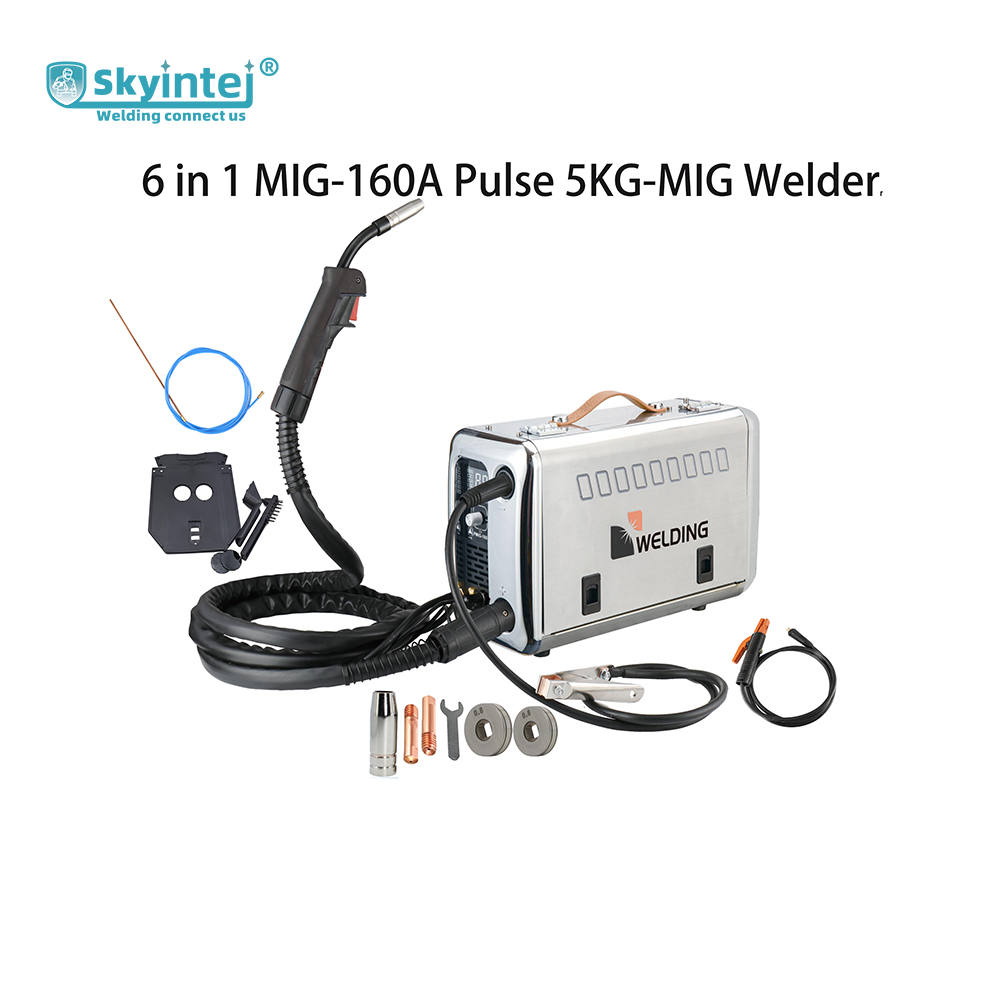

PMIG-160A Pulse Mode Gas Shielded Welding Machine
Heavy duty, durable welding machine tool designed for professional industrial applications with pulse mode gas shielded welding capability.
Technical Specifications
Specification | Value |
|---|---|
Suitable voltage range (V) | AC220V±15%, 50/60HZ |
Rated input current (A) | 32 |
Rated input power (kVA) | 7.1 |
MIG Output current range (A) | 40-160A |
MMA Output current range (A) | 20-160A |
TIG Output current range (A) | 20-160A |
Duty cycle T=40°C (%) | 35 |
U₀ Rated no load voltage (V) | 58 |
Insulation grade | F |
Protection class | IP21S |
Welding rod diameter MMA (mm) | 1.6/2.5/3.2/4.0 |
Wire diameter MIG (mm) | 0.8/0.9/1.0 |
Power factor (cosφ) | 0.7 |
Efficiency (%) | 85 |
Shell size (mm) | 410×165×240 |
Machine weight (KG) | 6 |
Key Features
Pulse Mode Gas Shielded Welding (PMIG) technology
Multi-process capability (MIG, MMA, TIG)
Heavy duty construction for industrial use
Compact and lightweight design
High efficiency (85%) operation
IP21S protection class for dust and water resistance
Supported Applications
Metal fabrication and manufacturing
Industrial maintenance and repair
Construction and structural welding
Automotive repair and fabrication
General metalworking applications
