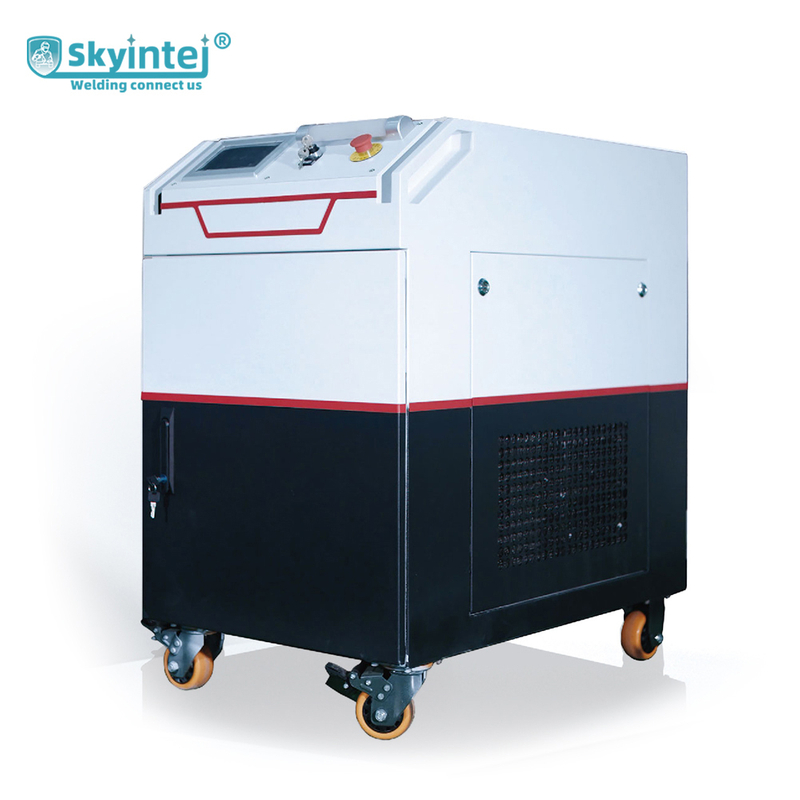

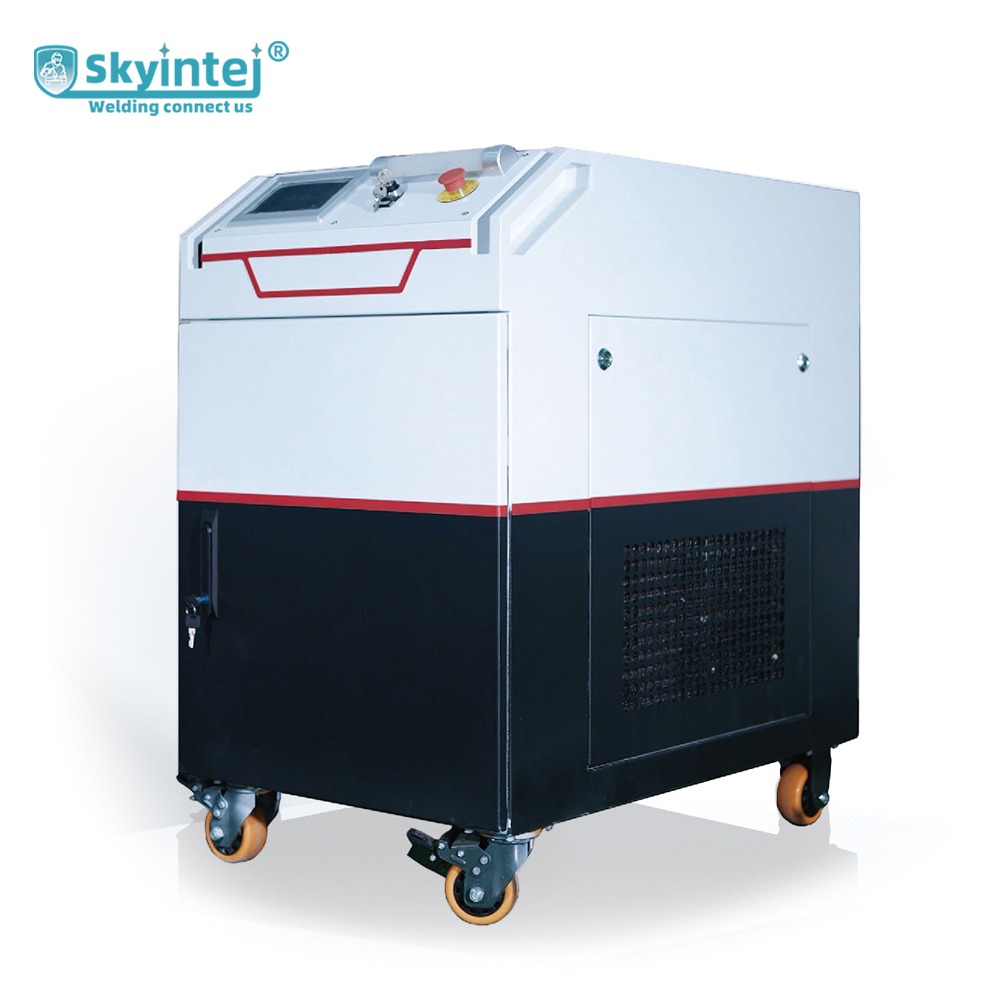

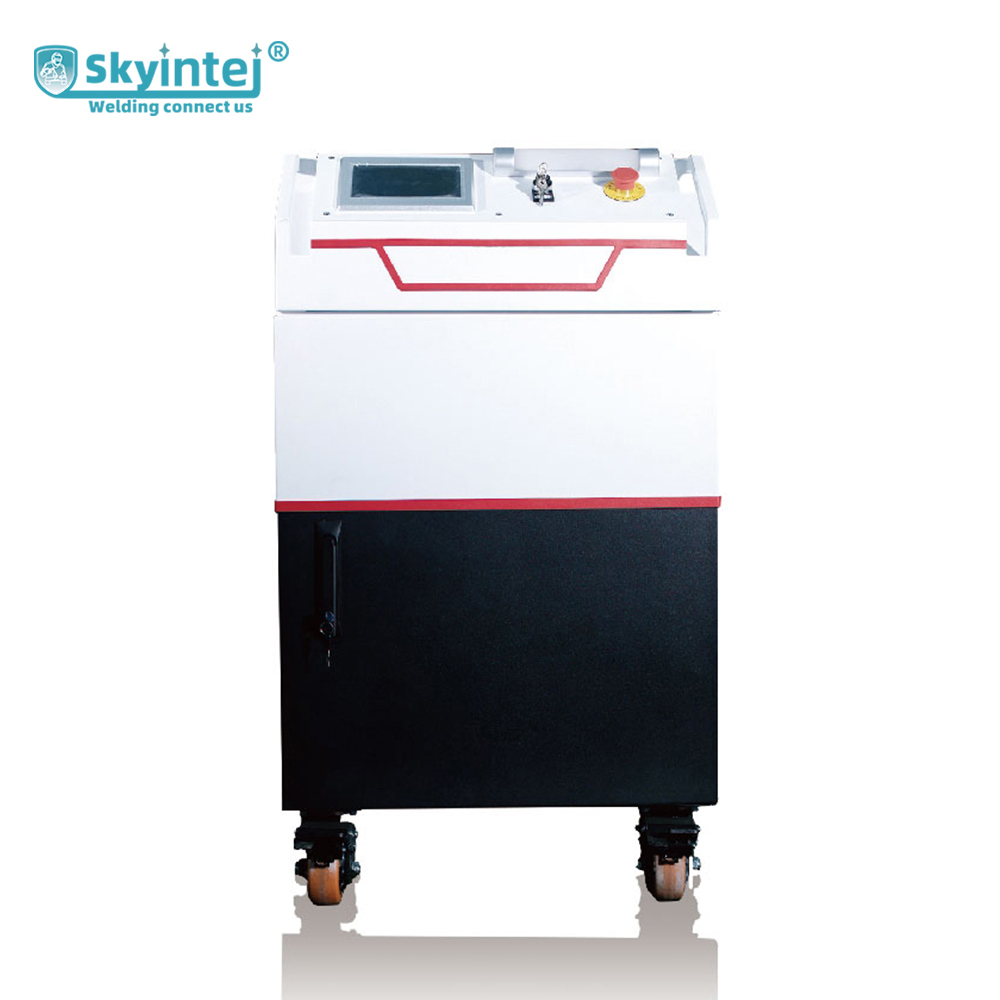

200-300W Cabinet
Skyintej
Professional industrial laser welding system designed for stable operation and batch processing of industrial parts with power options of 200W or 300W.
Robotic arm compatible for automated cleaning operations
High-performance water-cooling system for optimal thermal management
Extended service life of approximately 50,000-80,000 hours
Integrated exhaust vacuum system
Consumable-free operation with one-time investment
Complies with international safety standards
| Parameter | Specification |
|---|---|
| Laser Generator | Nano-second Pulsed Laser |
| Max Output Power (W) | 200/300 |
| Central Wave Length (nm) | 1064±5 |
| Output Power Stability (%) | ≥ 95% |
| Frequency (kHz) | 10~50/20~50 |
| Pulsed Length (ns) | 130/140 |
| Power Adjustment Range (%) | 10~100 |
| Max Single Pulse Energy (mj) | 10/12.5 |
| Length of Transmission Fiber (m) | 3/5 |
| Laser Safety Class | 4 |
| Cooling System | Water Cooled |
| Dimension (mm) | 640×1050×1080 |
| Weight (kg) | 169 |
Exceptional stability for continuous industrial operation
Ideal for high-volume batch welding applications
Minimal maintenance requirements
Cost-effective long-term operation
Enhanced safety compliance for industrial environments
